2-rijig Zelfinstellende kogellager 1303-TVH INA/FAG
kogellager 1303-TVH
Binnen Diameter: 17 mm
DBuiten Diameter: 47 mm
BBreedte: 14 mm
Afdichting: Open
Type lager: Zelfinstellende kogellagers
Basic Load Static: 3150 N
Basic Load Dynamic: 12900 N
Referentie toerentallen: 14000 r/min
EAN: 4012801472166
Merk: INA/FAG
Binnen Diameter [d]: 17 mm
Buiten Diameter [D]: 47 mm
Breedte [B]: 14 mm

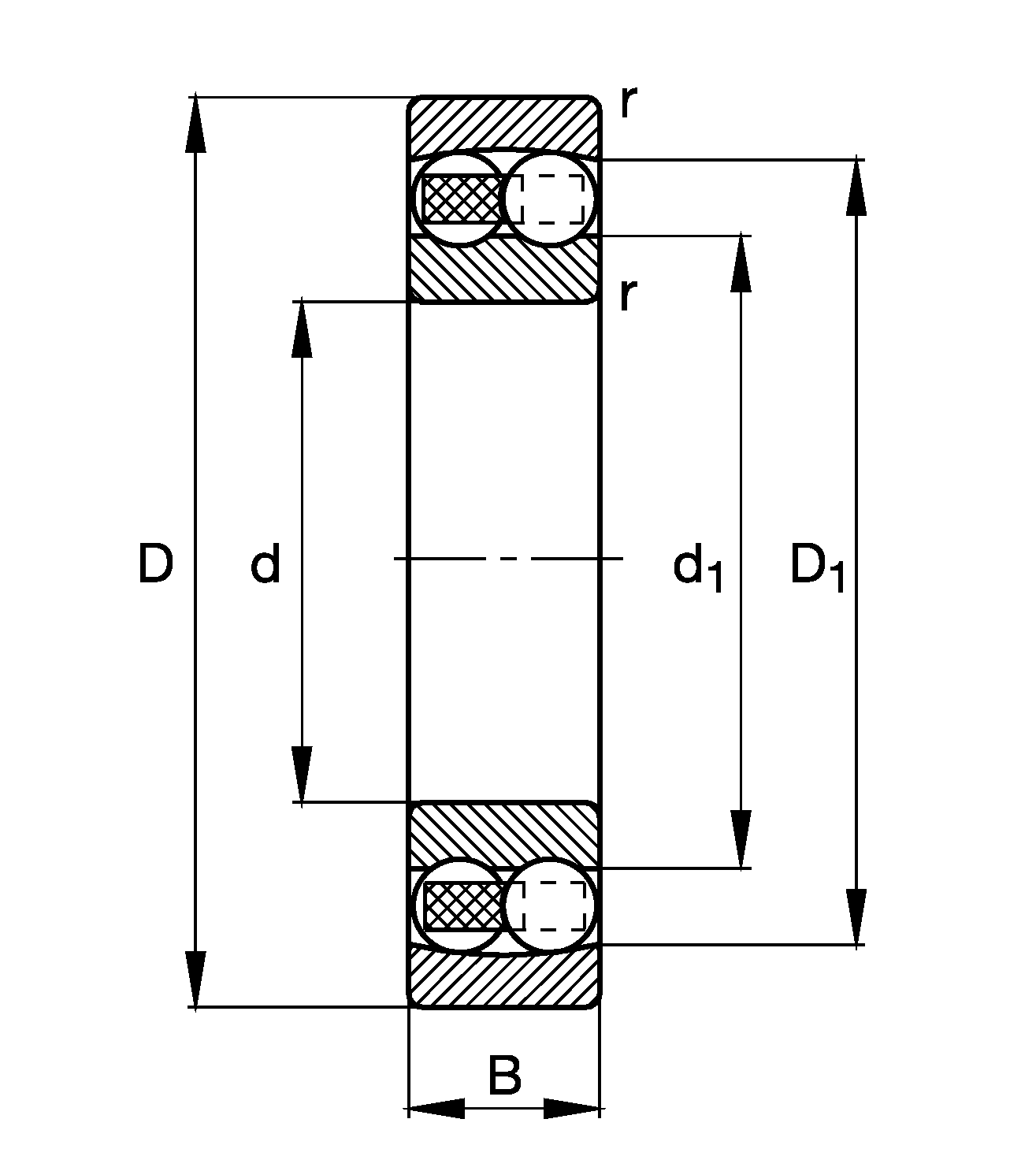

| d | 17 mm | |
| D | 47 mm | |
| B | 14 mm |
| D1 | 37 mm | |

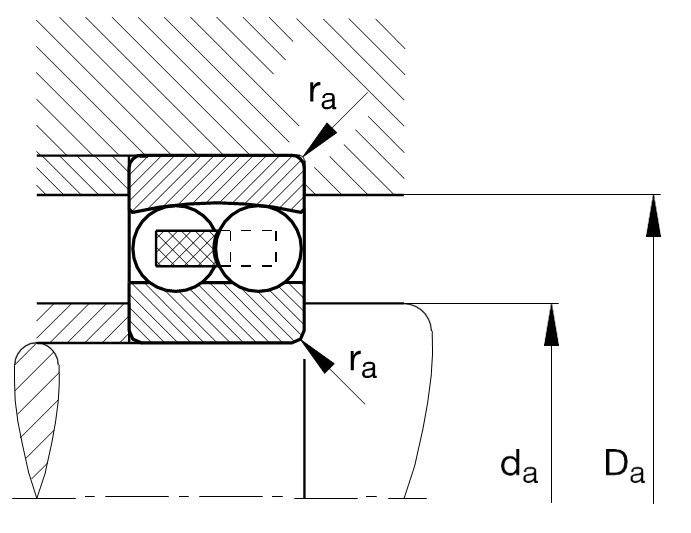

| Da max | 41,4 mm | |
| d1 | 26,7 mm | |
| da min | 22,6 mm | |
| ra max | 1 mm | |
| rmin | 1 mm |
| m | 0,065 kg | Mass |
| Cr | 12900 N | Basic dynamic load rating, radial |
| C0r | 3200 N | Basic static load rating, radial |
| nG | 17800 1/min | Limiting speed |
| Cur | 202 N | Fatigue limit load, radial |
| nϑr | 13300 1/min | Reference speed |
| e | 0,32 | |
| Y1 | 1,94 | |
| Y2 | 3 | |
| Y0 | 2,03 |
